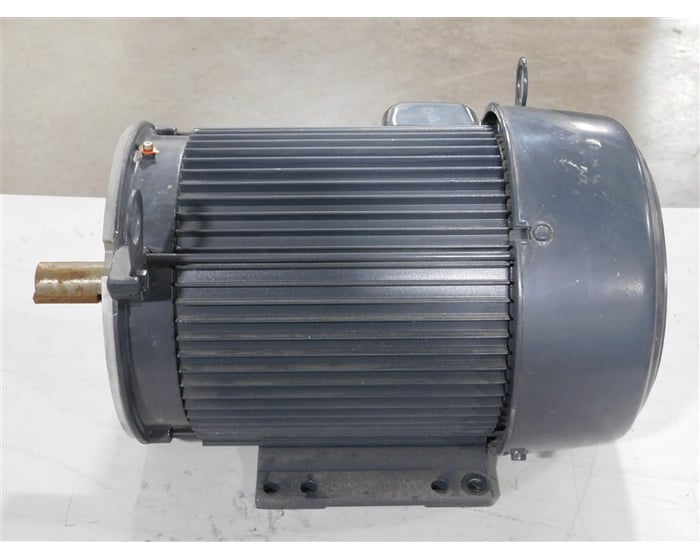

US Motors U32P3DC Electric Motor 1.5 HP 208-230/460V 60Hz 190/380V 50Hz Used
US Motors Electric Motor
Buy with confidence
All of our products carry a 100% satisfaction guarantee.
This is a used US Motors Electric Motor. Save thousands and buy used from Green Industrial today!
Catalog: U32P3DC
Model: CJ75
Shaft End Bearing: 6206-2ZJ/C3
Opp End Bearing: 6205-2ZJ/C3
Frame: 182TC
Type: UTE
Enclosure: TEFC
Phase: 3
Max. Amb.: 40 C
ID#: Y 05 7671102-0017 M 0005
Insul. Class: F
Duty: CONT
Shaft Diameter: 1-1/8"
Keyway Length: 2"
Keyway Width: 1/4"
60 Hz Ratings
HP: 1.5
RPM: 1175
SF: 01.25
Design: B
Code: J
Guaranteed Efficiency: 85.5
NEMA Nom. Efficiency: 87.5
Max. KVAR: 1.10
Nom. PF: 68.8
Volts: 208-230/460
FL Amps: 4.80 - 4.70/2.30
SF Amps: 5.5/2.7
50 Hz Ratings
HP: 1.5
RPM: 0970
SF: 01.00
Design: #
Code: G
Guaranteed Efficiency: 81.5
NEMA Nom. Efficiency: 84.0
Max. KVAR: 0.80
Nom. PF: 74.3
Volts: 190/380
FL Amps: 5.50/2.70
