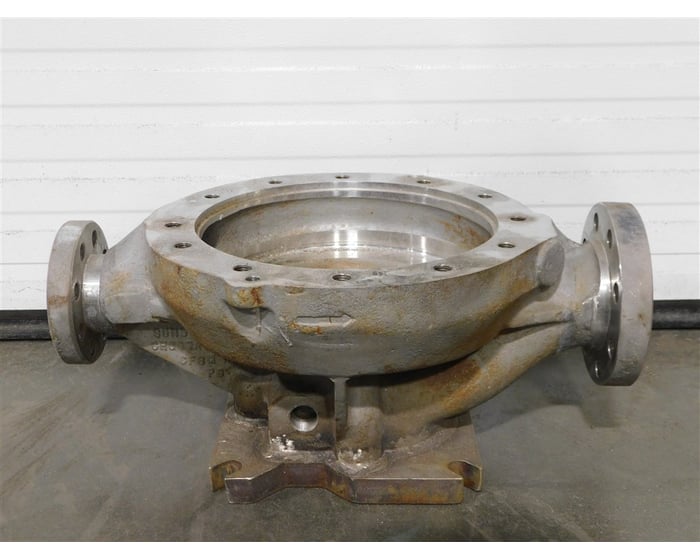

Sundyne Corp CH007AC0 IDB Heavy Duty Compressor Casing for LMC-341P Used
Sundyne Corp Heavy Duty Compressor Casing
Buy with confidence
All of our products carry a 100% satisfaction guarantee.
Sundyne Corp Heavy Duty Compressor Casing
For Use with Sundyne LMC-341P Vertical Inline Integrally Geared Process Gas Compressor
Model: CH007AC01DB
Rev.: AF
Material: CF8M Stainless Steel
Base Flange Bore: 3.886 in
Bottom Flange Width / Length: 11.865 in
Bottom Flange Side Port Bore: 1.185 in
Bottom Flange Height: 1.278 in
Casing Total Height: 11 in
Casing Total Width: 26 in
Top Rim Bores: 13.5 in - 13.25 in
Tom Rim Outside Diameter: 17.375 in
Mounting Hole Inside Diameter: 0.646 in
Output Flange Information
Raised Face Diameter: 3.615 in
Flange Diameter: 6.775 in
Flange Width: 1 in
Bolt Hole Diameter: 0.75 in
Input Flange Information
Raised Face: 5 in
Diameter: 8.375 in
Width: 1.335 in
Bolt Hole Inside Diameter: 0.875 in
Weight: 275 lb
