SKF 170mm / 6.693" Complete Pillow Block Bearing SAF 334 22334 CC/W33 Surplus

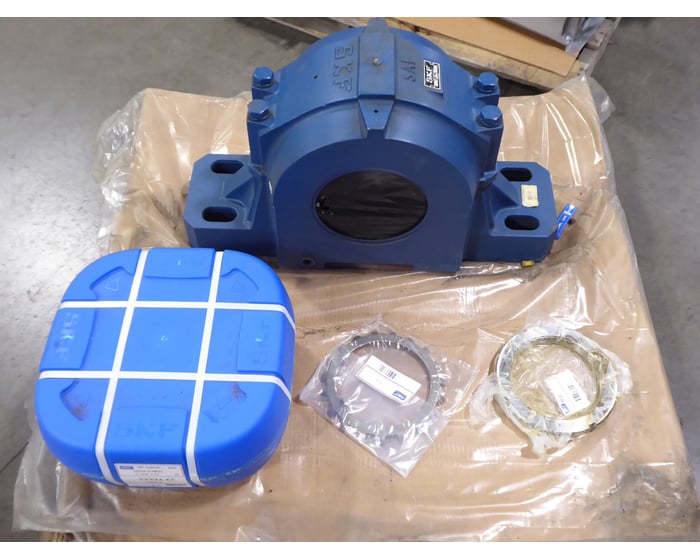

SKF Pillow Block Bearing Assembly

Includes:
SKF SAF 334 - bearing housing
SKF 22334 CC/W33 - spherical roller bearing
SKF W 34 - lock washer
SKF AN 34 - locknut

Housing Specs:

• Brand: SKF
• Model#: SAF 334
• Type: Pillow Block
• Configuration: Two-piece
• Mounting Arrangement: Through shaft / Shaft end
• Number of Bolt Holes: 4
• Material: Cast Iron
• Seal Type: Labyrinth seal
• Lubrication: Grease / Oil
• Seat Diameter: 14.173"
• Center Height: 8.25"
• Distance Between Bolt Holes: 5" (axial)
• Attachment Bolt Diameter: 1.25"

Bearing Specs:

• Brand: SKF
• Performance Class: Explorer
• Inside Diameter: 6.693"
• Outside Diameter: 14.173"
• Width: 4.724"
• Rows: 2
• Outer Ring: not present
• Bore Type: Cylindrical
• Cage: Sheet Meta
• Radial Internal Clearance: CN
• Tolerance Class for Dimensions: Normal
• Tolerance Class for Run-Out: P5
• Basic Dynamic Load Rating: 418,819 lb/ft
• Basic Static Load Rating: 485,587 lb/ft
• Reference Speed: 1400 RPM
• Limiting Speed: 1800 RPM
