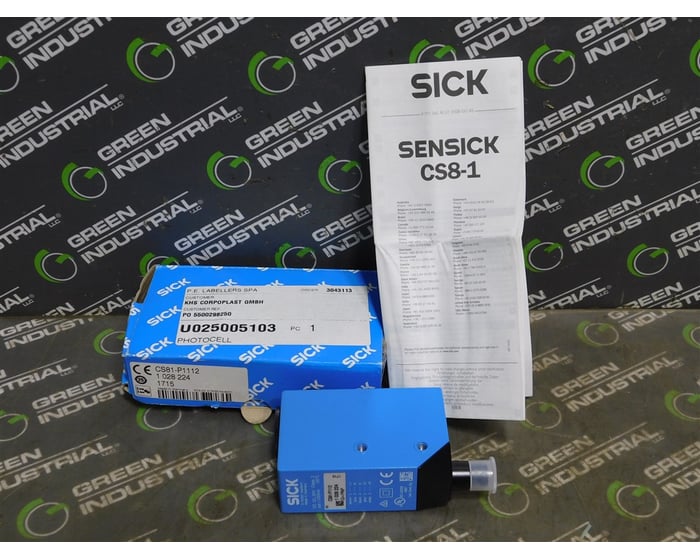

SICK CS81-P1112 Color Sensor 1028224 Light Spot Size 2mm x 4mm New

SICK Color Sensor

Type: CS81-P1112

Part No.: 1028224

Dimensions: (W x H x D) 30.4 mm x 80 mm x 53 mm

Sensing distance: ≤ 12.5 mm From leading edge of lens

Sensing distance tolerance: ± 3 mm

Housing design: Rectangular

Light source: LED, RGB

Wave length: 640 nm, 525 nm, 470 nm

Light spot size: 2 mm x 4 mm

Light spot direction: Vertical

Adjustment Teach-in: button

Teach-in mode: Static 1-point teach-in

Supply voltage: 10 V DC ... 30 V DC Limit values when operated in short-circuit protected network: max. 8 A.

Ripple: < 5 Vpp May not exceed or fall below Uv tolerances

Current consumption: < 120 mA Without load

Switching frequency: 1 kHz, 3 kHz, 6 kHz adjustable With light/dark ratio 1:1

Response time: 500 μs, 160 μs, 85 μs Signal transit time with resistive load.

Switching output: PNP

Switching output (voltage): PNP: HIGH = UV ≤ 2 V / LOW approx. 0 V

Output (channel): 1 color

Output current Imax.: 100 mA at 24V

Input, teach-in (ET): PNP, Teach: U = 10 V ... < UV, Run: U < 2 V

Input, blanking input (AT): PNP, Blanked: U > 10 V ... < Uv, Free-running: U < 2 V at >200 μs

Retention time (ET): 25 ms, non-volatile memory

Time delay Deactivation delay: 20 ms, shiftable

Connection type: Male connector M12, 5-pin

Protection class: II Reference voltage DC 32 V.

Circuit protection UV connections, reverse polarity protected, Output Q short-circuit protected, Interference pulse suppression

Enclosure rating: IP67

Weight: 400 g

Housing material: Metal, zinc diecast
