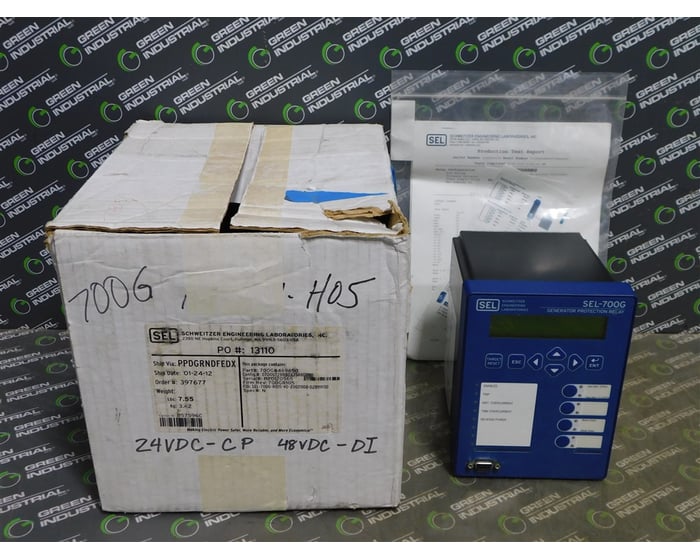

SEL SEL-700G Generator Protection Relay 0700G02BBB0X74850200 300V 20W Used

Schweitzer Engineering Laboratories Generator Protection Relay.

This is a used, ready-to-use protection relay.

    Brand: Schweitzer Engineering Laboratories
    Quantity: 1
    Condition: Used
    Series: SEL-700G
    Model#: 0700G02BBB0X74850200
    Power Supply Voltage: 24-48VDC
    VA Rating: 20W
    Internal Fuse: T3.15A H 250V
    Rated Impulse Withstand (Uimp): 4kV
    Insulation Voltage: 300V
    Operational Voltage: 240VAC Max.
    Operational Current: 3A at 120V, 1.5A at 240V
    Thermal Current: 5A
    Utilization Category: AC-15
    Contact Rating Designation: B300
    Insulation Voltage: 300V
    Short Circuit Rating: 1kA
    Enclosure: Type 12, IP65
    Degree of Protection Terminals: IP20
