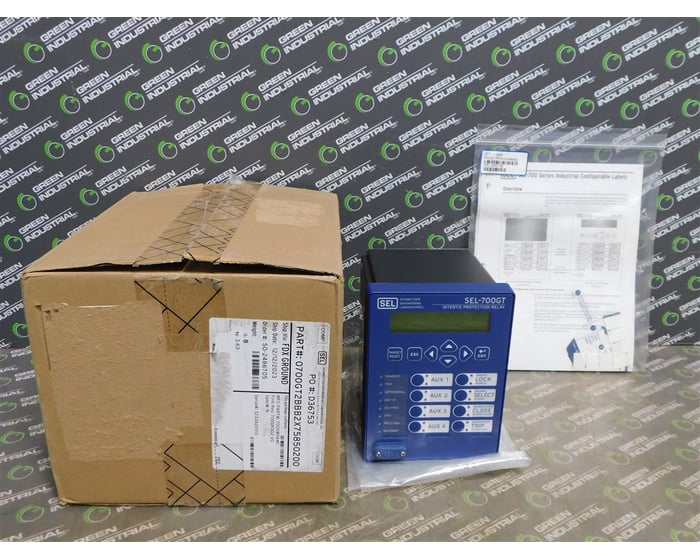

Schweitzer SEL-700GT Generator Protection Relay 0700GT2BBB2X75850200 Spec N New

Schweitzer Engineering Laboratories Generator Protection Relay.

This is a brand new, ready-to-use protection relay. The box has been opened for photos, but the unit has never been installed. Includes product literature on CD, factory test paperwork, and mounting hardware.

    Brand: Schweitzer Engineering Laboratories
    Quantity: 1
    Condition: New in box
    Series: SEL-7
    Model#: 0700GT2BBB2X75850200
    Firmware Revision: 700GR302-V0
    Spec#: N
    Power Supply Voltage: 24-48VAC
    Power Consumption: 25W
    Internal Fuse: T3.15A H 250V
    Phase / Neutral Current (Nominal): 5A/5A
    Phase Voltage (Maximum): 300VAC
    Phase Current (Nominal): 5A
    Control Voltage: 24VDC
    General Purpose Contact Outputs: 250VAC, 30VDC, 6A Resistive
    Pilot Duty: B300
    Ambient Temperature Range: -20°C to +50°C
    Certifications: UL, CAN ICES-001(A) / NMB-001(A)
