Schweitzer Engineering SEL-751A Feeder Protection Relay 751A51ABA0X0X850221 New

Schweitzer Engineering Laboratories Feeder Protection Relay.

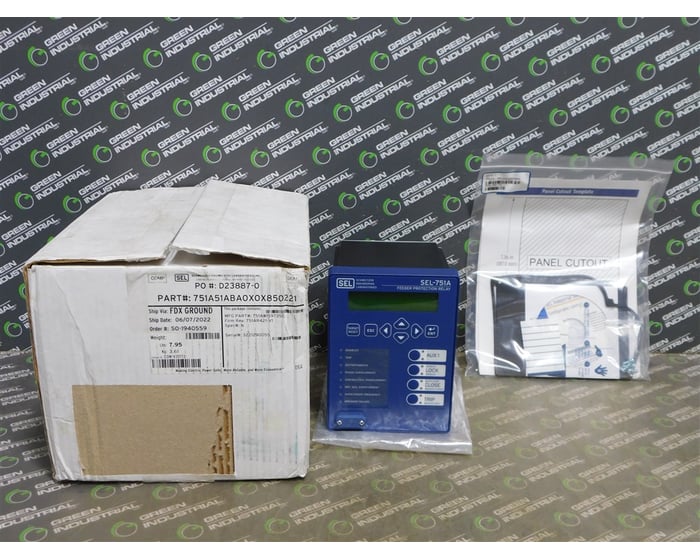

This is a brand new, ready-to-use protection relay. The box has been opened for photos, but the unit has never been installed. Includes product literature on CD, factory test paperwork, and mounting hardware.

    Brand: Schweitzer Engineering Laboratories
    Quantity: 1
    Condition: New in box
    Series: SEL-751A
    Model#: 751A51ABA0X0X850221
    MFG Part#: 751A#1597350
    Firmware Revision: 751AR421-V1
    Spec#: N
    Power Supply Voltage: 110-250VDC, 110-240VAC 50/60Hz
    Power Consumption: 50VA/25W
    Internal Fuse: T3.15A H 250V
    Phase/Neutral Current (Nom): 5A/5A
    Contact Inputs Control Voltage: 125VDC
    Contact Outputs Gen. Purpose: 250VAC, 30VDC, 6A Res.
    Pilot Duty: B300
    Ambient Temperature Range: -20°C to +50°C
    Protocols: SEL ASCII, Compressed ASCII, Fast Meter, Fast Operate, Fast Message, Fast SER, Mirrored Bits communications, and Modbus RTU
