Schweitzer Engineering SEL-700G Feeder Protection Relay 0700G02BBB0X74850200 New

Schweitzer Engineering Laboratories Feeder Protection Relay.

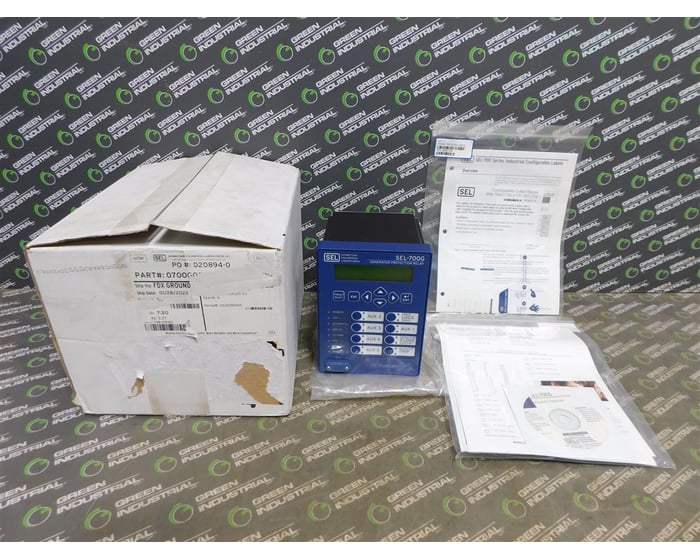

This is a brand new, ready-to-use protection relay. The box has been opened for photos, but the unit has never been installed. Includes product literature on CD, factory test paperwork, and mounting hardware.

    Brand: Schweitzer Engineering Laboratories
    Quantity: 1
    Condition: New in box
    Series: SEL-700G
    Model#: 0700G02BBB0X74850200
    Firmware Revision: GR301-V3
    Spec#: N
    Power Supply Voltage: 24-48VDC
    Power Consumption: 25W
    Internal Fuse: T3.15A H 250V
    Phase / Neutral Current (Nominal): 5A/5A
    Phase Voltage: 300 VAC Max.
    VS/VN Voltage: 300VAC Max.
    Contact Inputs Control Voltage: 24VDC
    Contact Outputs Gen. Purpose: 250VAC, 30VDC, 6A Res.
    Phase Voltage (Maximum): 300VAC
    Control Voltage: 125VDC
    General Purpose Contact Outputs: 250VAC, 30VDC, 6A Resistive
    Pilot Duty: B300
    Ambient Temperature Range: -20°C to +50°C
    Protocols: SEL ASCII, Compressed ASCII, Fast Meter, Fast Operate, Fast Message, Fast SER, Mirrored Bits communications, and Modbus RTU
