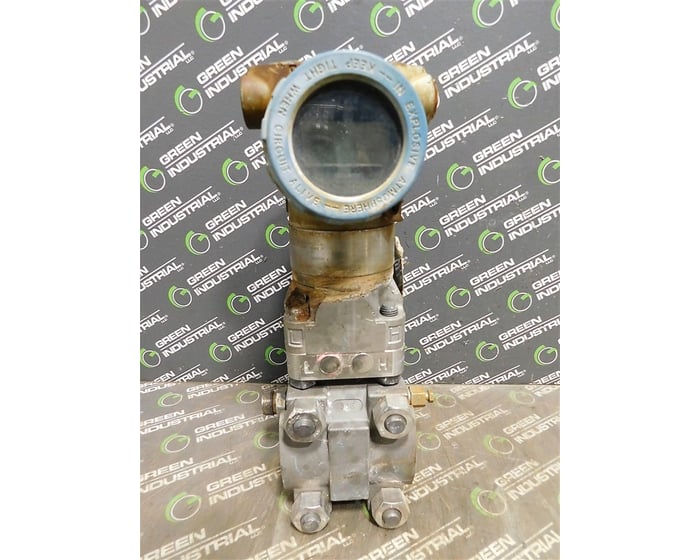

Rosemount 3051HG5A22AD21AB6L4I5M5 Gage Pressure Transmitter Used

Rosemount Gage Pressure Transmitter for High-Temperature Processes

Max. W.P.: 2000 PSI / 138 Bar

Supply: 10.5 - 55 VDC

Cal.: 0 to 2000 in H2O

Complete Model: 3051HG5A22AD21AB6L4I5M5

Model: 3051HG

Pressure Range: –14.7 to 2000 psig/20 psi  (–1,01 to 138 bar/1,4 bar)

Output: 4-20mA with Digital Signal Based on HART Protocol

Process Connection Flange Material: SST

Process Connection Drain/Vent Material: SST

Process Isolating Diaphragm: 316L SST

O-ring Material: Glass-Filled TFE

Process Fill Fluid: D.C. 200 Silicone

Sensor Module Isolator Material: SST

Sensor Module Fill Fluid: Silicone

Housing Material: Polyurethane-covered Aluminum

Conduit Entry Size: 1/2 - 14 NPT

Mounting Bracket Options: Universal Mounting Bracket for 2-in. pipe or Panel Mount, SST Bolts

Bolt for Flange and Adapter Options: Austenitic 316 SST Bolts

Product Certification Options: FM Non-incendive and Intrinsic Safety Approval

LCD Display Options: LCD display for Aluminum Housing (Housing Codes A,B,C, and D only)
