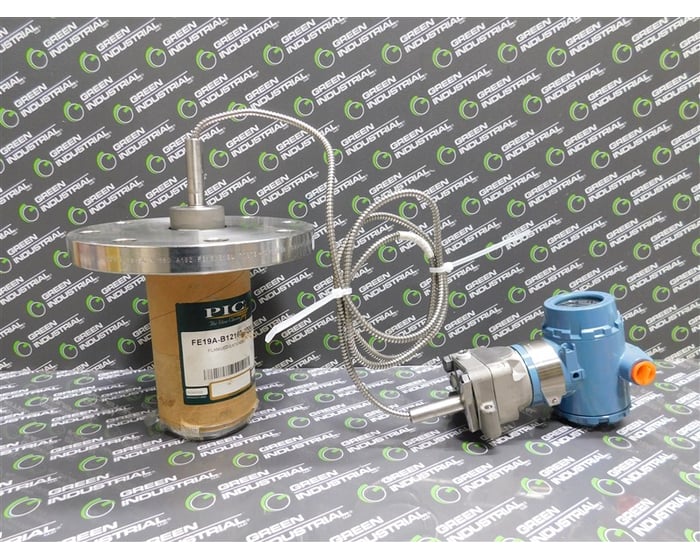

Rosemount 3051CG4A22A1AS1L4B4I5M5 Pressure Transmitter New
Rosemount Pressure Transmitter
Buy with confidence
All of our products carry a 100% satisfaction guarantee.
This is a new Rosemount Pressure Transmitter. Save thousands and buy from Green Industrial today!
Model No.: 3051CG4A22A1AS1L4B4I5M5
Max. W.P.: 275 PSI / 19.0 Bar
Supply: 10.5 - 55 VDC
Serial No.: 2064405
Cal.: 0 to 275 PSI
Output: 4 - 20 mA
Model Code: 3051C
Measurement Type: (G) Gage
Pressure range: (4) –14.2 to 300 psi (–0.97 to 20.68 bar)
Transmitter Output: (A) 4 - 20 mA with digital signal based on HART Protocol
Materials of Construction: (2)
Process flange type - Coplanar
Flange material - SST
Drain/vent - SST
Isolating Diaphragm: (2) 316L SST
O-Ring: (A) Glass-filled PTFE
Sensor fill fluid: (1) Silicone
Housing Material: (A) Aluminum - 1/2-14 NPT Conduit entry size
Seal Assemblies: (S1) Assemble to one Rosemount 1199 seal
Bolting Material: (L4) Austenitic 316 SST bolts
Process connection size, material, extension length (high side)
Process connection Size - 4-in./DN 100
Material: 316L SST
Extension length: 4-in./100 mm
Product Certifications: (I5) USA Intrinsically Safe, Nonincendive
Display and interface options: (M5) LCD Display
