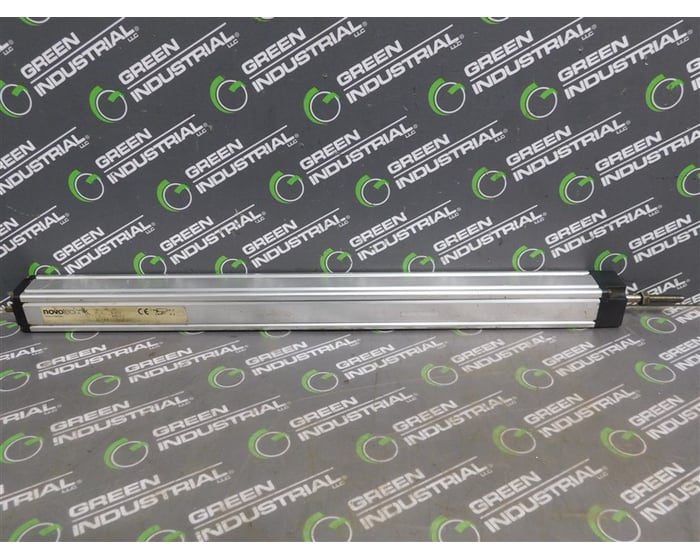

Novotechnik LWH 360 Position Transducer Art.024314 F.Nr.048968/D Used

This is a used Novotechnik Position Transducer. Save thousands and buy used from Green Industrial today!

Manufacturer: Novotechnik

Part Number: LWH 360

Connection: 4 Pin Connector

Electr. Measuring Range: 366 mm

Defined Electrical Range: 360 mm

Output Signal: Voltage Divider

Resistance Value: 5 Ohms

Resistance Tolerance: +/- 20%

Independent Linearity: 0.05 +/- %FS

Repeatability: ≤ ±0.01 mm

Recommended operating wiper current: ≤ 1 μA

Max. wiper current in case of malfunction: 10 mA

Max. permissible supply voltage Ub: 42 VDC

effective temp. coefficient of the output-to-applied voltage ratio: typ. 5 ppm/K

Insulation resistance (500 VDC): ≥ 10 MΩ

Dielectric strength (500 VAC, 50 Hz): ≤ 100 μA
