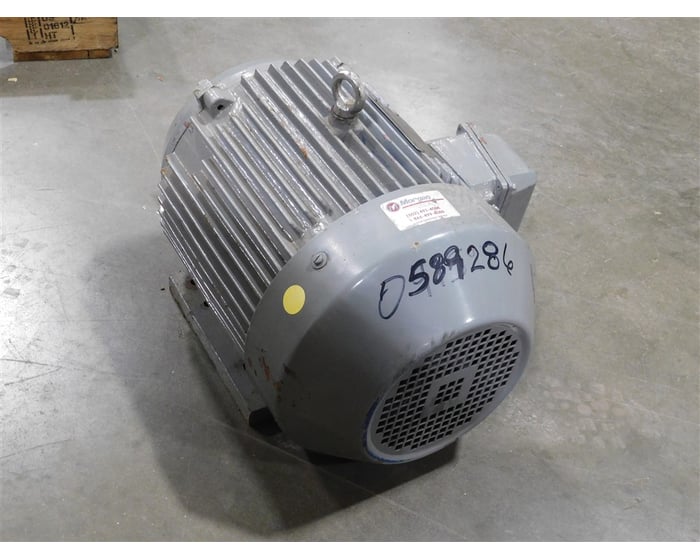

North American Electric Inc. H3610 Induction Motor 10HP 3535RPM 230/460V Used

North American Electric Inc. Electric Motor

Cat. No.: H3610

Frame: 215T

Enclosure: TEFC

Phase: 3

Shaft End. Bearing: 6308-ZZ

Opp End. Bearing: 6308-ZZ

Max. Amb.: 40°C

Ins. Class: F

Rating: CONT

Motor Weight: 231 lbs

Usable on 208V 60Hz at 26.3 Max. Amps

60 Hz Ratings

HP: 10

RPM: 3535

Volts: 230/460

F.L.Amps: 23.8/11.9

S.F. Amps: 27.4/13.7

Service Factor: 1.15

Design Letter: B

Code: H

NEMA Nom. Eff.: 89.5%

NEMA Min. Eff.: 87.5%

Nom. P.F.: 0.884

Max. kVar: 2.41

50 Ratings

HP: 10

RPM: 2915

Volts: 190/380

F.L. Amps: 28.2/14.1

S.F. Amps: 28.2/14.1

Service Factor: 1.0

Code: H

NEMA Nom. Eff.: 87.5%

NEMA Min. Eff.: 85.5%

Nom. P.F.: 0.924

Max. kVar: 1.98

Shaft Length: 3.5 in

Shaft Diameter: 1.3775 in

Keyway Width: 0.30 in

Keyway Length: 2.5 in
