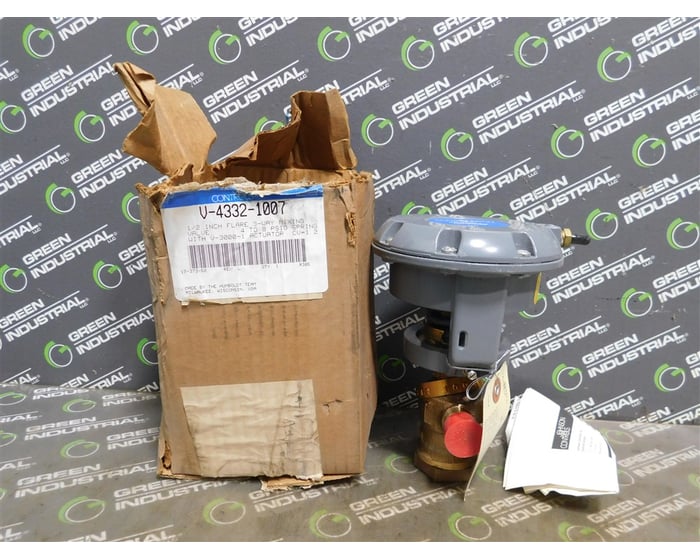

Johnson Controls V-4332-1007 Three Way Actuated Valve 250 PSIG 1750 kPa 1/2" New

Johnson Controls Three Way Actuated Valve

Model: V-4332-1007

Body Rating: 250 PSIG 1750 kPa

Max. Temp.: 281 F  140 C

Body Style & Sizes: 3 Way - 1/2 in Connections NPT

Normal Position Upper Port: Closed

Normal Position Lower Port: Open

Control Air Connection: Barbed Fitting for 5/32 or 1/4 in OD Polytubing

Max. Control Pressure: 30 PSIG 210 kPa

Spring Ranges Nominal: 4 to 8 or 9 to 13 PSIG, 28 to 56 or 63 to 91 kPa

Flow Characteristic: Characterized Modulating

Stem Material: Stainless Steel

Plug Material: Brass

Body Material: Cast Brass with Natural Finish

Actuator Material: Die Cast Aluminum with Enamel Finish

Ambient Temp. Limits: -10 to 150F -23 to 66 C

Max. Storage Temp.: 150F 66C
