Fafnir 222W Radial Deep Groove Ball Bearing 110mm Bore 200 O.D. 38mm Width New
Fafnir Radial Deep Groove Ball Bearing
Buy with confidence
All of our products carry a 100% satisfaction guarantee.

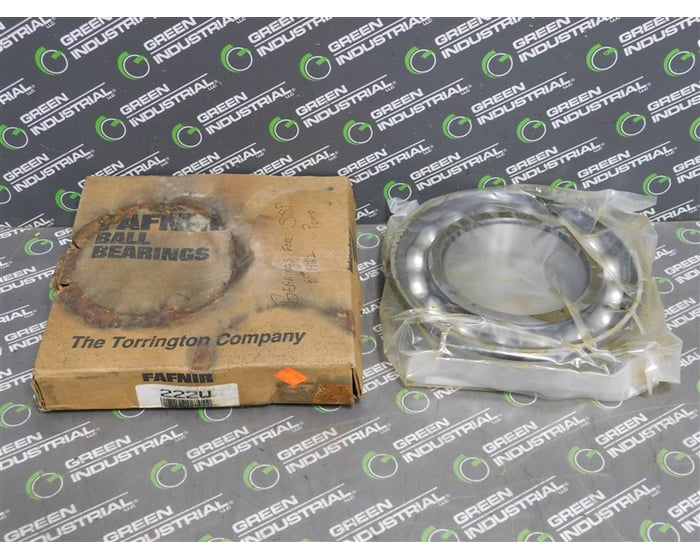

This is a new Fafnir Radial Deep Groove Ball Bearing. Save thousands and buy from Green Industrial today!
Manufacturer: Fafnir
Model: 222W
Bore Type: Straight
Bore Diameter: 110 mm
Outside Diameter: 200 mm
Overall Width: 38 mm
Closure Type: Open
Snap Ring Included: Without Snap Ring
Bearing Material: Steel
Cage Material: Steel
Component Type: Assembly
Description: 222 W BRG
Fillet Radius: 0.083 in
Finish/Coating: Uncoated
Inner Ring Width: 1.496 in
Internal Clearance: R, R
Manufacturer UPC Number: 087796067042
Maximum Operating RPM: 2727.273 RPM (oil), 2272.727 RPM (grease)
Maximum Operating Temperature: 120° C
Maximum RPM: 1940 rpm
Minimum Operating Temperature: -50° C
Outer Diameter Type: Cylindrical
Outer Ring Width: 38 mm
Precision Class: ABEC1
Precision Rating: Not Rated
Radial Dynamic Load Capacity: 49100 lbf
Radial Static Load Capacity: 42000 lbf
Retainer Material: Cold Rolled Steel
Rolling Element: Ball
Row Type: Single
Row Type & Fill Slot: Single Row Non-Fill Slot
Seal Type: Open
Self Aligning: No
Series: 200
Type of Bearing: Ball Bearing
Weight: 10.53 lbs
Product Type: Radial & Deep Groove Ball Bearings
Bore Type: Straight
Closure Type: Open
