Factory New 75 KVA Step Up Dry Transformer Pri 240 Sec 480Y 277 3 Phase 10 Year Warranty 423-9233-000

More Views
Quick Overview

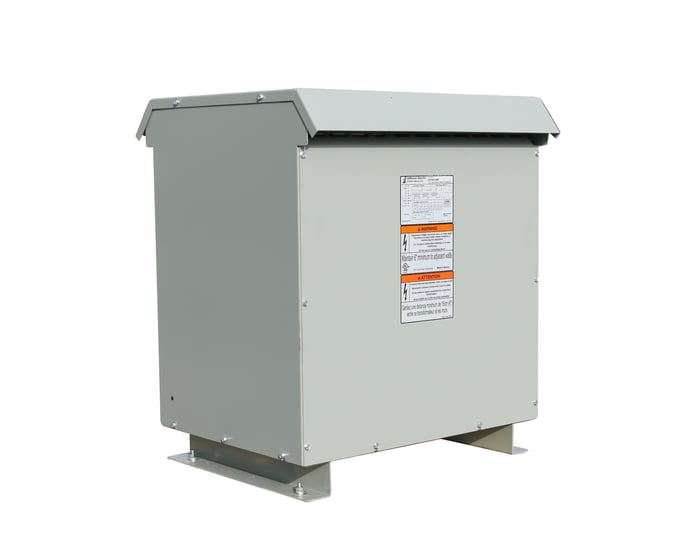

Jefferson Electric 75kVA Step Up Transformer 423-9233-000
Manufacturer:
Jefferson Electric
GIBUYS Item #:
MR-423-9233-000
Availability:
1 in Stock
$2,500.00
Product Description

This is a FACTORY NEW Jefferson Electric Step-Up dry type transformer for sale. We are a Wisconsin based authorized Jefferson dealer with many transformers IN STOCK and ready to ship! We can also custom order any voltage in nearly any size, just ask! We are here to help! All of our Jefferson transformers come standard with a NEMA 3R, Rainproof outdoor enclosure allowing them to be installed both outdoors or indoors! All units come with lugs and a 10 year limited factory warranty!



Save thousands and buy NEW from Green Industrial today!



Factory New Dry Type Energy Efficient Transformer

10 YEAR LIMITED WARRANTY

Free Shipping To Continental United States

(Does not include residential or any lift gate fees, those charges will be extra and added. Free shipping is only to standard loading dock address' that do not trigger extra fee's in UPS' Shipping Software Platform. No exceptions to this rule apply)



Manufacturer : Jefferson Electric

Catalog Number : 423-9233-000

Step-Up Transformer

KVA : 75

Phase : 3

Primary Voltage / High Side : 240 Delta

Secondary Voltage / Low Side : 480 / 277 Y

Max Temp Rise : 150 Deg C

Impedance : 4.8 %

Lugs Included : YES

Efficiency : Meets DOE-2016 Efficiency Standards

Seismic Rated: Yes

Enclosure Type : NEMA 3R (Indoor AND Outdoor Rated)

Winding Material : AL / AL

Primary Side Taps : 252, 246, 240, 234, 228, 222, 216

Condition : Factory New

Warranty : 10 Year Limited Warranty



Actual Transformer Weight : 605 Pounds

Actual Transformer Dimensions : 27 Inches Wide x 26 Inches Deep Including the Rain Shield, 21 Inches Deep at the base x 32 Inches Tall

Shipping Weight and Dims : 680 Pounds, 48x48x60

Ships From : Belgium, WI 53004
