Cutler Hammer Magnum DS MDS616 Power Circuit Breaker 1600A 635V 1200A Plug Used

Cutler Hammer Magnum DS Low Voltage AC Power Circuit Breaker

Manufacturer

Cutler Hammer

GIBUYS Item No

54631Q

Availability In stock

Only 1 left

$3,250.00

Buy with confidence

All of our products carry a 100% satisfaction guarantee.

We offer a 30-day return policy on everything we sell unless otherwise noted. We care about our customers and we strive for 100% satisfaction with every order.

Product Description

Cutler Hammer Magnum DS Low Voltage AC Power Circuit Breaker

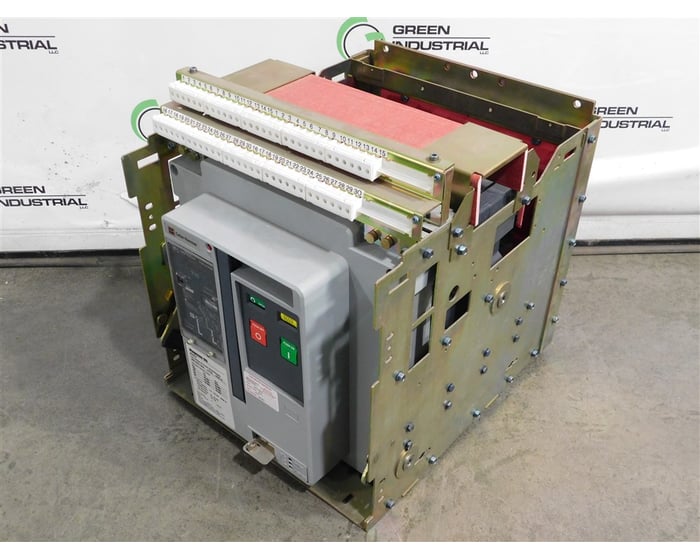

The cradle this breaker comes with does not include any copper for external connections. Please see the pictures for more information.

Model: MDS616

Frame Amperage: 1600 A

Poles: 3

Frequency: 50/60 Hz

Interruption Rating: 254/508/635 V Inst. Trip. 65kA Short Delay 65kA

Motor Operator: 110-125 VAC 50/60 Hz

Trip Unit Power: 24 - 48 VDC

Aux Switches: 2A / 2B

G.O.#: RC54581

It: 2

Seq: 001

Cat#: MDS6163WEA 12MEC AAN2Y NNNAX

Enclosure Requirements Dwg: 2C13090

Installation and Operating Instructions: 2C12060

Trip Unit: Digitrip 520M

Trip Catalog No.: 5MLSIA (E)

Interrupting Speed: Long Time, Short Time, Instantaneous, Alarm Only

Rating Plug Amperage: 1200 A

M1=16.8 kA
