Cameron 60S2B3006L36UTGLGRS 6" Ball Valve & Dynatorque 7D-33-28027 Actuator New

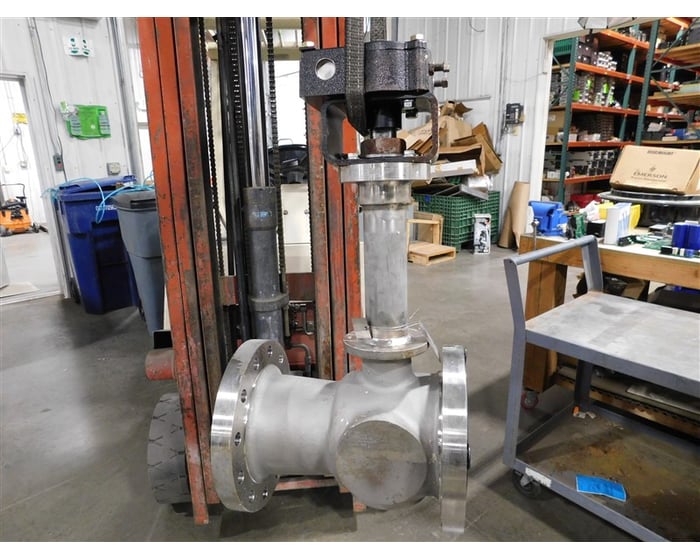

Cameron Ball Valve with Dynatorque Actuator

Manufacturer
Cameron Measurement Systems
GIBUYS Item No
51257W-SF
Availability In stock
Only 1 left
$2,750.00

Buy with confidence

All of our products carry a 100% satisfaction guarantee.

We offer a 30-day return policy on everything we sell unless otherwise noted. We care about our customers and we strive for 100% satisfaction with every order.
Product Description

This is a new Cameron Ball Valve with Dynatorque Actuator. Save thousands and buy from Green Industrial today!

This Valve is prepared for Chlorosilane, Methylchloride, and Benzene Service.

Valve Information

Model No.: 60S 2B 300 6L36 UT GLGRS

Size: 06 - 6"

Porting: S - Standard Port

Series: 2B - 21/20 Cryogenic Unibody Flanged

End Connections: 300 - ASME 300# Flanged RF

Body/End Material: 6L - 316 Stainless Steel

Ball/Stem Material: 36 - 316 Stainless Steel

Seat/Seal Material: U - Ultrafil 25, T - Virgin TFE

Bolting: G - ASTM A320 L7 x A194 Grade 4

Modifiers: LG - Locking Gear Operator, RS - Self-Relieving Seats



Actuator Information

Cat. No.: 7D-33-28027

Model: DT12

Max. Output Torque: 16,000 lbf.in

Gear Ratio: 57:1

Turns for 90°: 14.25

Standard Output Bore: 2"

Standard Key Size: 0.375"

Standard Mounting Pattern: Qty 4, 1/2-13 Size

Standard Mounting Pattern: 4.921 Bolt Circle

Mech. Adv.: 13.68

Handwheel Size: 30"

Approximate Rim Pull: 78 lbf
