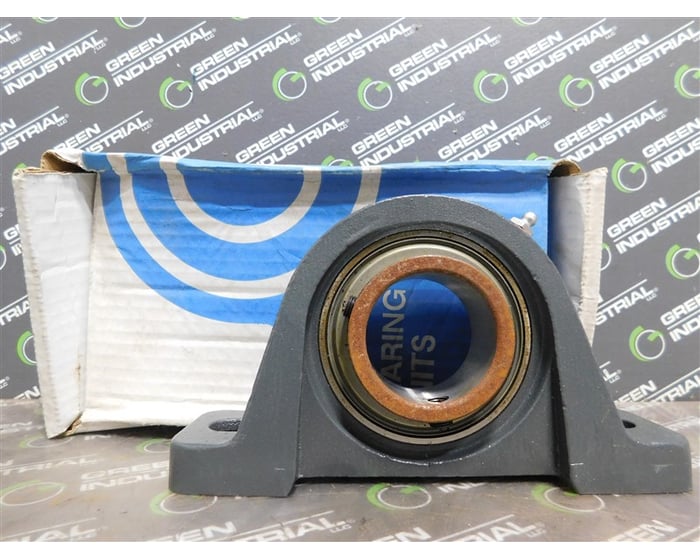

Browning VPS-131 Pillow Block Bearing Unit 1.9375 in Bore 2.1880 in Base W New NIB
Browning Pillow Block Bearing
Buy with confidence
All of our products carry a 100% satisfaction guarantee.
This is a new Browning Pillow Block Bearing. Save thousands and buy from Green Industrial today!
Manufacturer: Browning
Model: VPS-131
Base Width: 2.1880 in
Base to Bore Centerline: 2.2500 in - 2-1/4 in
Bolt Center-to-Center Length: 5.8750 to 6.5000 in
Bolt Size: 0.6250 in
Bore Diameter: 1.9375 in - 1-15/16 in
Bore Type: Round / Straight
Duty Type: Light Duty, Light Duty
Expansion Type: Non-Expansion Bearing (Fixed)
Finish/Coating: Gray
Housing Material: Cast Iron
Insert Material: 52100 Bearing Steel
Locking Device: Set Screw
Lubrication Type: Lithium Complex NLGI 2 Grease
Manufacturer UPC Number: 662289319015
Maximum Operating Temperature: 200 °F
Maximum RPM: 2000 rpm
Misalignment Angle: ±1.5° Misalignment - Static Only
Mounting Type: 2-Bolt Base
Overall Height: 4.5630 in
Overall Length: 8.0000 in
Radial Dynamic Load Capacity: 7889 lbf
Radial Static Load Capacity: 5216 lbf
Replacement Bearing: VS-131
Seal Type: Single Lip Contact
Series: Intermediate
Product Type: Pillow Block Ball Bearing Units
Type of Bearing: Ball Bearing
Base to Bore Centerline: 2.2500 in
Bore Diameter: 1-15/16 in
Expansion Type: Non-Expansion Bearing (Fixed)
Housing Material: Cast Iron
Locking Device: Set Screw
Mounting Type: 2-Bolt Base
