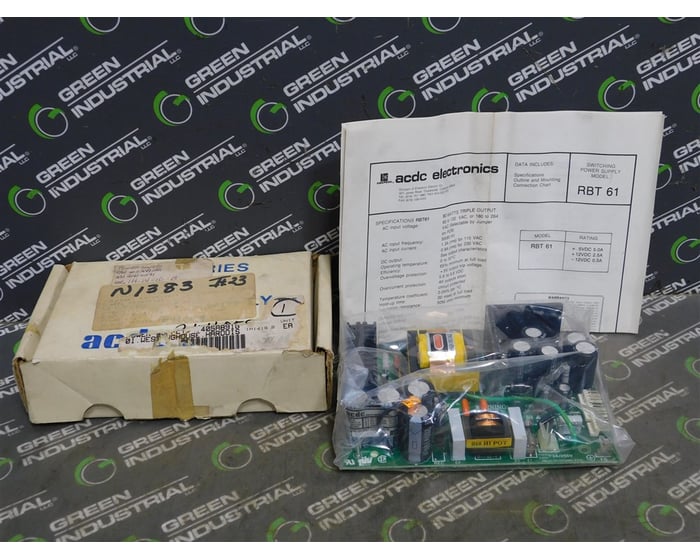

ACDC RBT-61 Switching Power Supply 60W 115V/1.3A 230V/0.9A 50/60Hz New

ACDC Switching Power Supply

Model: RBT 61

Rating: +5VDC 5.0A, +12VDC 2.5A, -12VDC 0.5A

AC Input Voltage: 90 to 132 VAC, or 180 to 264 VAC (Selectable by Jumper on PCB)

AC Input Frequency: 50/60 Hz

AC Input Current: 1.3A (rms) for 115 VAC, 0.9A (rms) for 230 VAC

DC Output: AC115V/1.3A, 230V/0.9A, 50/60 Hz

Operating Temp.: 0 to 50°C

Efficiency: 65% minimum at full load

Overvoltage protection: +5V output trip voltage, 5.6 to 6.8 VDC

Overcurrent protection: All outputs short short-circuit protected

Temperature coefficient: 0.04% per °C

Hold-up time: 20 msec at full load

Insulation resistance: 50M ohm minimum

Dielectric withstand voltage testing: Performed 100%

Mean-time-between failure: Greater than 50,000 hrs. at full load for 25°C ambient temperature

Storage Temp.: -20 to +85°C

Size: 6.3 in L x 3.9 in W x 1.77 in H

Weight: 1 pound

AC Input Connector: Molex 5273-03A

DC Output Connector: Molex 5046-04A x 3
