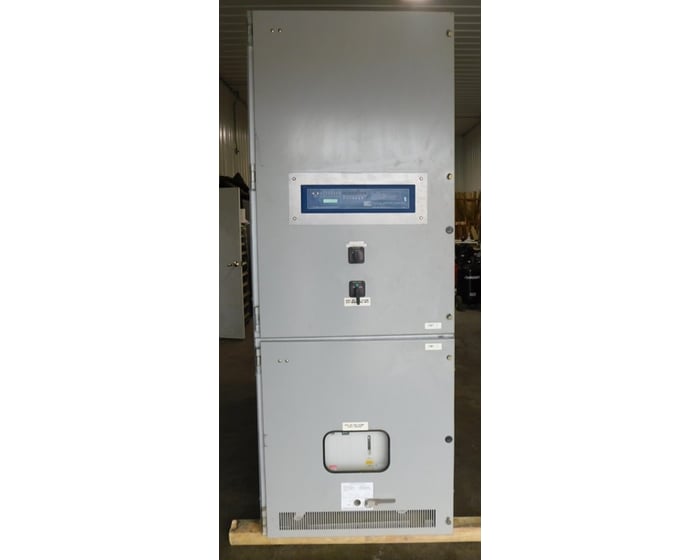

1200 Amp 4160V Generator Switchgear ABB AB3C111500000U0 ADVAC Vacuum Breaker
1200 Amp 4160V Electrical Circuit Breaker for a 4160V Generator
We offer a variety of finance programs including no payment for 90 days and a cash loan to any equipment financing. CIT is our trusted partner for your financing needs.
Buy with confidence
All of our products carry a 100% satisfaction guarantee.
This is a 1200 Amp 4160V Electrical Circuit Breaker for a 4160V Generator. This Electrical Switchgear is 1200 Amps and is sized large enough for up to 6000KW 4160v.
FOB:
281 Commerce ST
Belgium, Wisconsin 53004 USA
CONDITIION: Used, Working Condition
This switchgear includes the ABB ADVAC 1200 A 4160V Vacuum Circuit Breaker listed below.
ABB ADVAC Generator Breaker Assembly
Breaker Manufacturer: ABB
Number of Trips: 26
Serial No.: 1VAFACC57916001-010307#
Prod. Year: 2007
ANSI: C37.04 Rev 2001
Model: AB3C111500000U0
Cap Switching: 400 AMP GEN PURPOSE
Max. Voltage: 4.76 kV
Continuous Current: 1200 A
Sym. Short Circuit Current: 40 kA
Voltage Range Factor: K = 1.00
BIL Rating: 60 kV
Rated Frequency: 50/60 Hz
Rated Interrupting Time: 5 Cycles
Control Voltage
Charge: 120VAC 50/60 Hz
Close: 120VAC 50/60 Hz
Open: 24 VDC
Instruction Bulletin: 6.2.15.7-1
Breaker Weight: 192 kg
Events Recorder Manufacturer: Schweitzer Engineering Laboratories
Model: SEL-300G
Part No.: 0300G103225XX1XXX
Power Supply: 24/48 VDC, 25 W
Log Input: 24 VDC
Amps AC: 5-PH, 5-N
Dimensions & Weight:
85 in L x 37 in W x 98 in H
Weight: 2735 lbs
GIBUYS# 54666W
