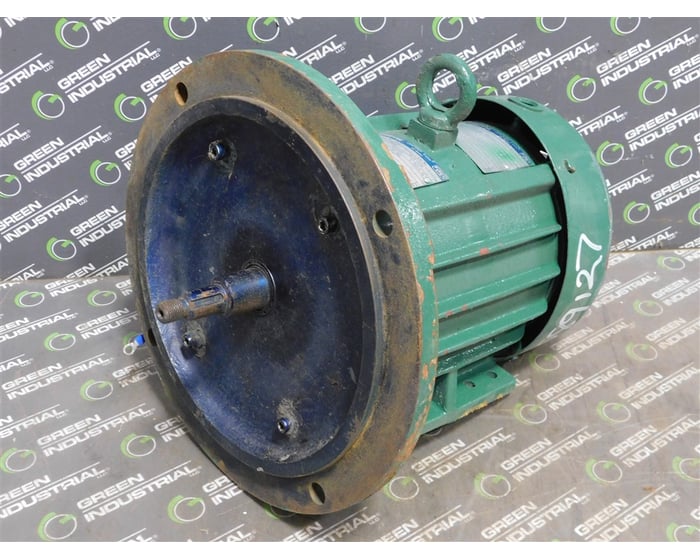

A.O. Smith F-391319-63 AC Motor 2HP 1740 RPM 230/460V 5.8/2.9A Pulley Shaft Used

A.O. Smith Century E-plus AC Motor

Part No.: F-391319-63

Enclosure: EF

Cat. No.: E166

Frame: 145T

Phase: 3

Type: SCE

Ambient: 40°C

Insulation Class: F

Drv. Bearing: 205

Opp. Drv. Bearing: 204

60 Hz 230/460V Rating

HP: 2

Amps: 5.8/2.9 A

RPM: 1740

NEMA Design: B

NEMA Nom. Eff.: 84

Duty: CONT

Service  Factor: 1.15

Code: J

Nom. Performance Factor: 76.0

50 Hz 200/400V Ratings

HP: 2

Amps: 6.8/3.4

RPM: 1430

NEMA Design: B

NEMA Nom. Eff.: 82.0

Duty: CONT

Service Factor: 1.0

Code: H

Nom. Performance Factor: 78

60 Hz 200V Ratings

HP: 2

Amps: 6.2

RPM: 1715

NEMA Design: B

NEMA Nom. Eff.: 83.0

Duty: CONT

Service Factor: 1.0

Code: G

Nom. Performance Factor: 84.0

Flange Outside Diameter: 11 in

Flange Mounting Hole ID: 0.525 in

Bolt to Bolt Centerline: 10 in

Shaft Diameter: 0.978 in - 0.664 in - 0.414 in

Keyway Width: 0.185 in

Keyway Length: 0.850 in

Thread Pitch: 0.05 in

Shaft Length: 2.75 in
