3.3Nm Schneider Electric SH31001P01F2000 Servo Motor SH3 100 480V 6000 RPM Used

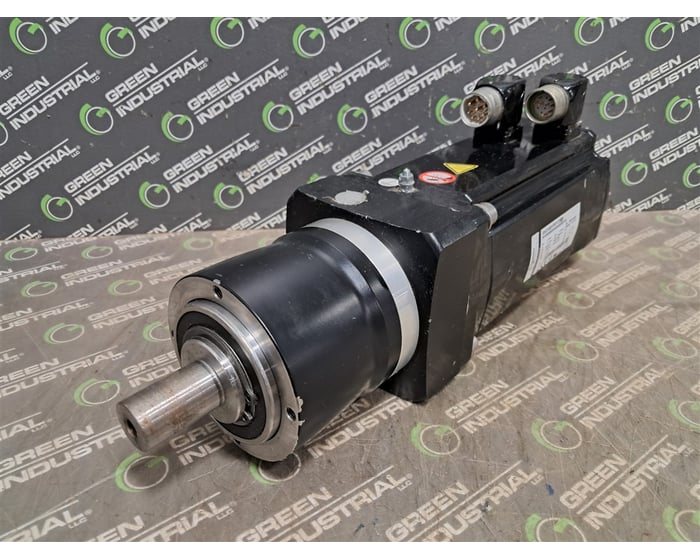

Schneider Electric Geared Servo Motor

Model: SH100/50030/0/0/00/00/00/01/00

ID-No.: SH31001P01F2000

Range Compatibility: PacDrive 3

Device short name: SH3

Maximum mechanical speed: 6000 rpm

[Us] rated supply voltage: 115...480 V

Phase:Three phase

Continuous stall current: 3.5 A

Continuous stall torque: 26.02 lbf.in (2.94 N.m) 115...480 V three phase

Continuous power: 1190 W

Peak stall torque: 85.0 lbf.in (9.6 N.m) 115...480 V three phase

Nominal output power:
410 W 115 V single phase
790 W 230 V single phase
1410 W 400 V three phase
1630 W 480 V three phase

Nominal torque
25.76 lbf.in (2.91 N.m) 115 V single phase
23.37 lbf.in (2.64 N.m) 230 V single phase
20.09 lbf.in (2.27 N.m) 400 V three phase
20.09 lbf.in (2.27 N.m) 480 V three phase

Nominal speed
1250 rpm 115 V single phase
2500 rpm 230 V single phase
5000 rpm 400 V three phase
6000 rpm 480 V three phase

Maximum current Irms: 12.0 A

Shaft end: Smooth shaft

Shaft diameter: 0.7 in (19 mm)

Shaft length: 1.6 in (40 mm)

IP degree of protection: IP54 shaft bushing without shaft seal ring: conforming to IEC 60034-5

IP65 motor: conforming to IEC 60034-5

IP65 shaft bushing: conforming to IEC 60034-5

Encoder type: Absolute single turn SinCos Hiperface

Speed feedback resolution: 128 periods

Holding brake: With

Holding torque: 79.7 lbf.in (9 N.m)

Mounting Support: International standard flange

Motor flange size: 3.9 in (100 mm)

Electrical Connection: Rotatable right angled connector

Torque constant: 0.84 N.m/A 248 °F (120 °C)

Back emf constant: 60 V/krpm 68 °F (20 °C)

Number of motor poles: 4.0

Rotor inertia: 2.018 kg.cm²

Stator resistance: 3.8 Ohm

Stator inductance: 9.5 mH

Maximum radial force Fr
900 N 1000 rpm
720 N 2000 rpm
630 N 3000 rpm
570 N 4000 rpm
530 N 5000 rpm

Maximum axial force Fa: 160 N

Type of cooling: Natural convection

Length: 7.9 in (199.5 mm)

Centring collar diameter: 3.7 in (95 mm)

Centring collar depth: 0.1 in (3.5 mm)

Number of mounting holes: 4

Mounting holes diameter: 0.4 in (9.0 mm)

Circle diameter of the mounting holes: 4.5 in (115 mm)

Product Weight: 10.6 lb(US) (4.8 kg)

Sizing reference: SH31001P

Network number of phases: 3

Temperature copper hot: 266 °F (130 °C)

Electrical connection: rotatable right angled connector

Output current 3s peak: 12.0 A

Inertia
0.618 kg.cm² of brake
1.4 kg.cm² of motor

Gearbox Manufacturer: Somic Verpackungsmaschinen

Somic-Nr.: M-06-067-51001

Type: NP 025X-MF1-10-0E1-1S

Size: NP 025X

Gearhead Versions: Motor-Mounted Gearhead

Stage Number: 1-stage

Ratio: 10

Clearance Specification: Standard

Shaft Diameter: 0.865 in

Shaft Length: 1.625 in
