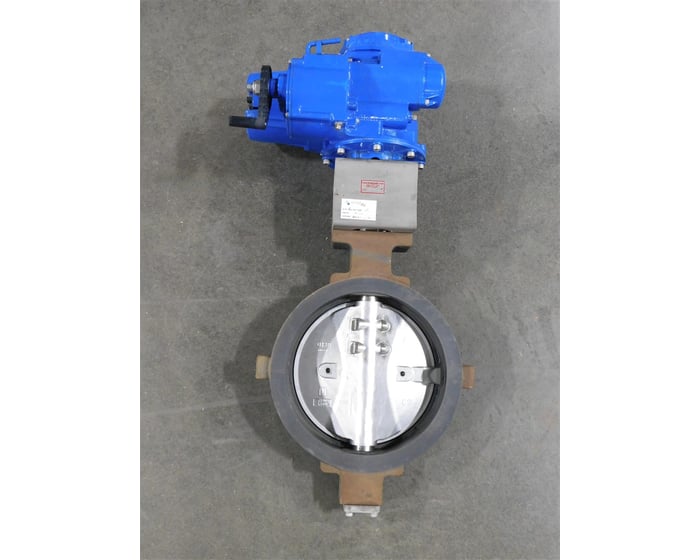

14" Flowserve/Jamesbury QX-5/815W1122HBXZ Actuated Valve Assembly 285 PSIG New
Flowserve / Jamesbury Actuated Valve Assembly
We offer a variety of finance programs including no payment for 90 days and a cash loan to any equipment financing. CIT is our trusted partner for your financing needs.
Buy with confidence
All of our products carry a 100% satisfaction guarantee.
Flowserve / Jamesbury Actuated Valve Assembly
Valve Information
Manufacturer: Jamesbury
Valve Type: Wafer-Sphere
Size: 14 in
Valve Code: 815W1122HBXZ
Mod.: C
Body Model: J-0146-WCB
Press. Class: ANSI 150
Body: CSTL
Disc: 316SS
Seat: XTREME
Shaft: 17-4PH
Max. Shut-Off Pressure: 285 PSIG @ -20°F, 170 PSIG @ 500°F
Actuator Information
Manufacturer: Flowserve
Product Range: Limitorque
Model: QX-5
60-120 SECONDS FOR 90 DEG.
Rated Torque: 1500 ft-lbs
Rated Torque: 2034 Nm
Voltage: 100 - 240 VAC
Frequency: 50/60 Hz
Phase: 1&3
Output: 0.26 HP, 0.18 kW
Full Load Amps: 2.5
Locked Rotor Amps: 9.0
Lubricant: SHB-68
Enclosure Type: 3,4,4X, 6
IP Rating: 68
Temperature: -30°≤ T AMB ≤ 70°C
Install Per Manual: LMENIM3306
Year of Manufacturer: 2014
Weight: 267 lb
Shipping Dimensions: 48 in L x 40 in W x 24 in T
Shipping Weight: 325 lb
