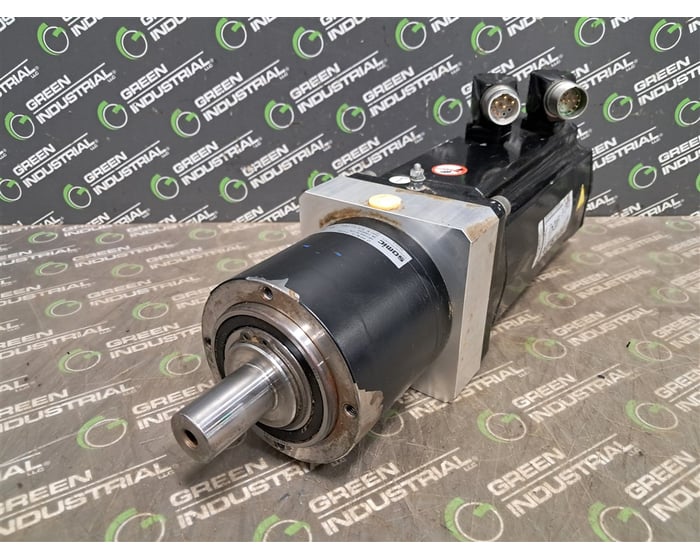

5.8Nm Schneider Electric SH31002P01A2000 Servo Motor SH3 100 480V 6000 RPM Used

Schneider Electric Geared Servo Motor

Model: SH100/40060/0/0/00/00/00/00/00

ID-No.: SH31002P01A2000

MainRange Compatibility: PacDrive 3

Device short name: SH3

Maximum mechanical speed: 6000 rpm

[Us] rated supply voltage: 115...480 V

Phase:Three phase

Continuous stall current: 4.8 A

Continuous stall torque: 51.3 lbf.in (5.8 N.m) 115...480 V three phase

Continuous power: 1900 W

Peak stall torque: 162.0 lbf.in (18.3 N.m) 115...480 V three phase

Nominal output power:
580 W 115 V single phase
1090 W 230 V single phase
1930 W 400 V three phase
2210 W 480 V three phase

Nominal torque
48.7 lbf.in (5.5 N.m) 115 V single phase
46.02 lbf.in (5.2 N.m) 230 V single phase
40.7 lbf.in (4.6 N.m) 400 V three phase
38.9 lbf.in (4.4 N.m) 480 V three phase

Nominal speed
1000 rpm 115 V single phase
2000 rpm 230 V single phase
4000 rpm 400 V three phase
4800 rpm 480 V three phase

Maximum current Irms: 17.1 A

Shaft end: Smooth shaft

Shaft diameter: 0.7 in (19 mm)

Shaft length: 1.6 in (40 mm)

IP degree of protection: IP54 shaft bushing without shaft seal ring: conforming to IEC 60034-5

IP65 motor: conforming to IEC 60034-5

IP65 shaft bushing: conforming to IEC 60034-5

Encoder type: Absolute single turn SinCos Hiperface

Speed feedback resolution: 128 periods

Holding brake: Without

Mounting Support: International standard flange

Motor flange size: 3.9 in (100 mm)

Electrical Connection: Rotatable right angled connector

Torque constant: 1.21 N.m/A 248 °F (120 °C)

Back emf constant: 77 V/krpm 68 °F (20 °C)

Number of motor poles: 4.0

Rotor inertia: 2.31 kg.cm²

Stator resistance: 2.4 Ohm

Stator inductance: 6.75 mH

Maximum radial force Fr
990 N 1000 rpm
790 N 2000 rpm
690 N 3000 rpm
620 N 4000 rpm

Maximum axial force Fa: 160 N

Type of cooling: Natural convection

Length: 8.05 in (204.5 mm)

Centring collar diameter: 3.7 in (95 mm)

Centring collar depth: 0.1 in (3.5 mm)

Number of mounting holes: 4

Mounting holes diameter: 0.4 in (9.0 mm)

Circle diameter of the mounting holes: 4.5 in (115 mm)

Product Weight: 12.8 lb(US) (5.8 kg)

Sizing reference: SH31002P

Network number of phases: 3

Temperature copper hot: 266 °F (130 °C)

Electrical connection: rotatable right angled connector

Output current 3s peak: 17.1 A

Inertia
  0.0 kg.cm² of brake
2.31 kg.cm² of motor

Gearbox Manufacturer: Somic Verpackungsmaschinen

Type: LP 090-ML1-5-010-000

Size: LP 090

Gearhead Versions: Motor-Mounted Gearhead

Stage Number: 1-stage

Ratio: 5

Type of output Shaft: Smooth Shaft

Somic-Nr.: M-06-064-09005

Shaft Diameter: 0.865 in

Shaft Length: 1.5 in
